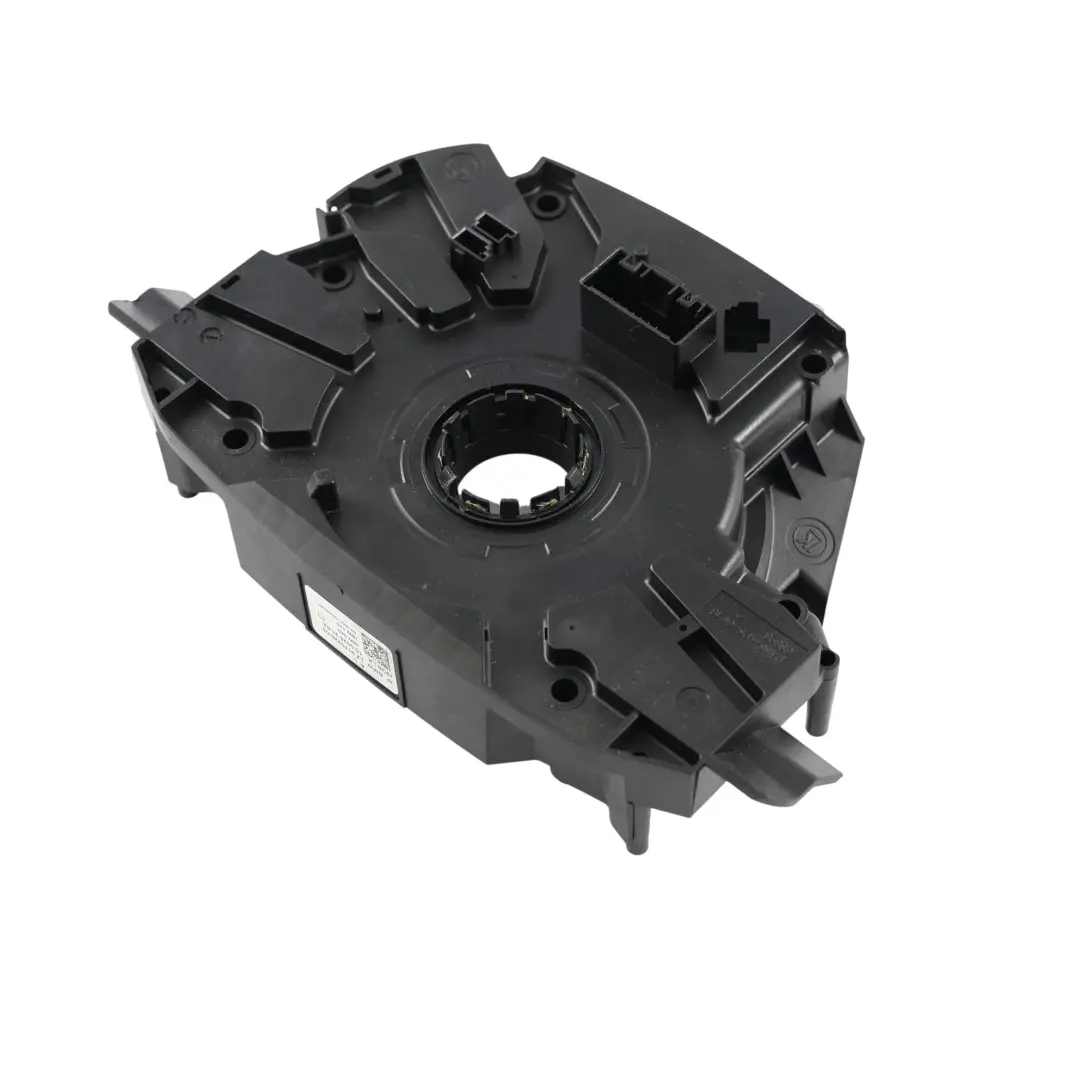

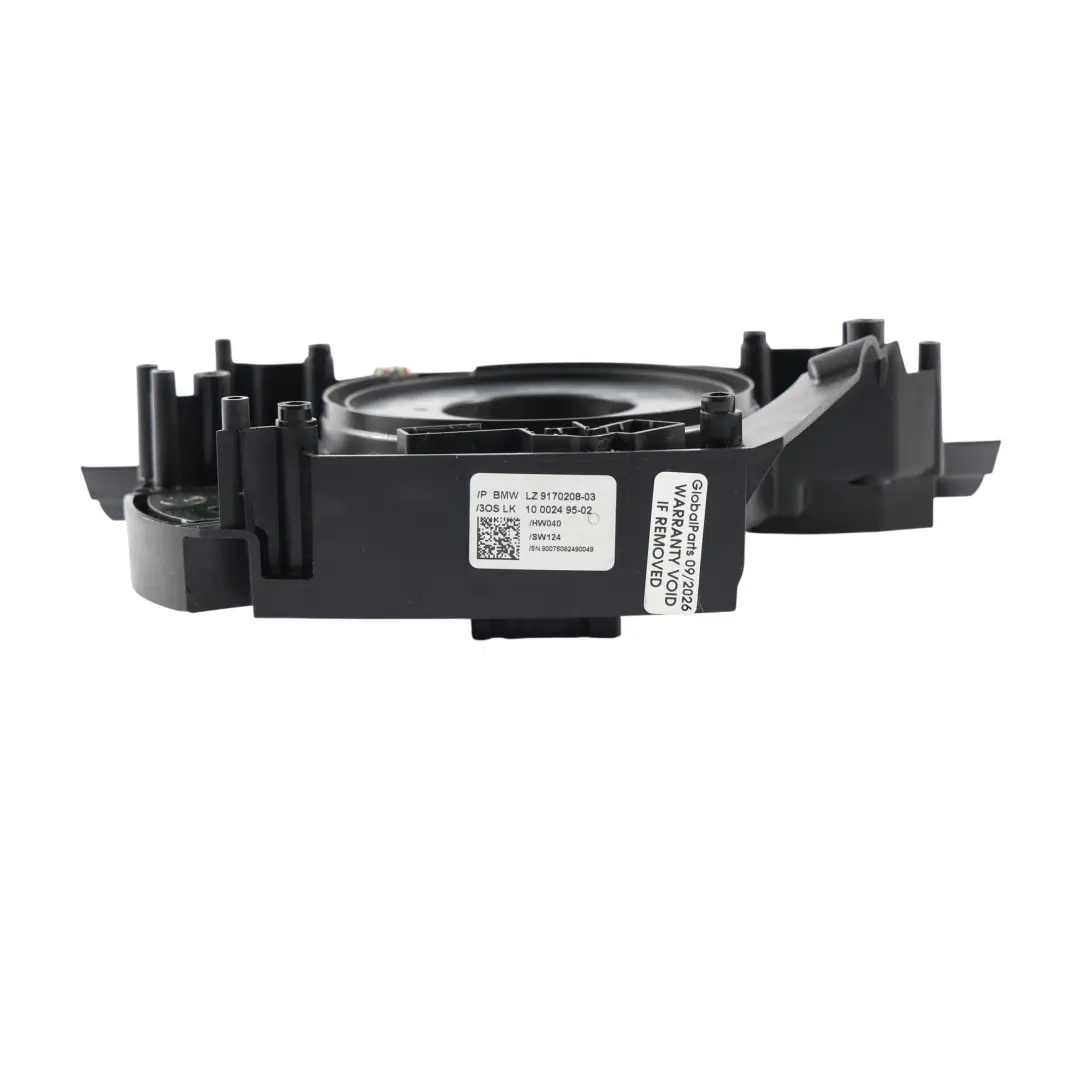

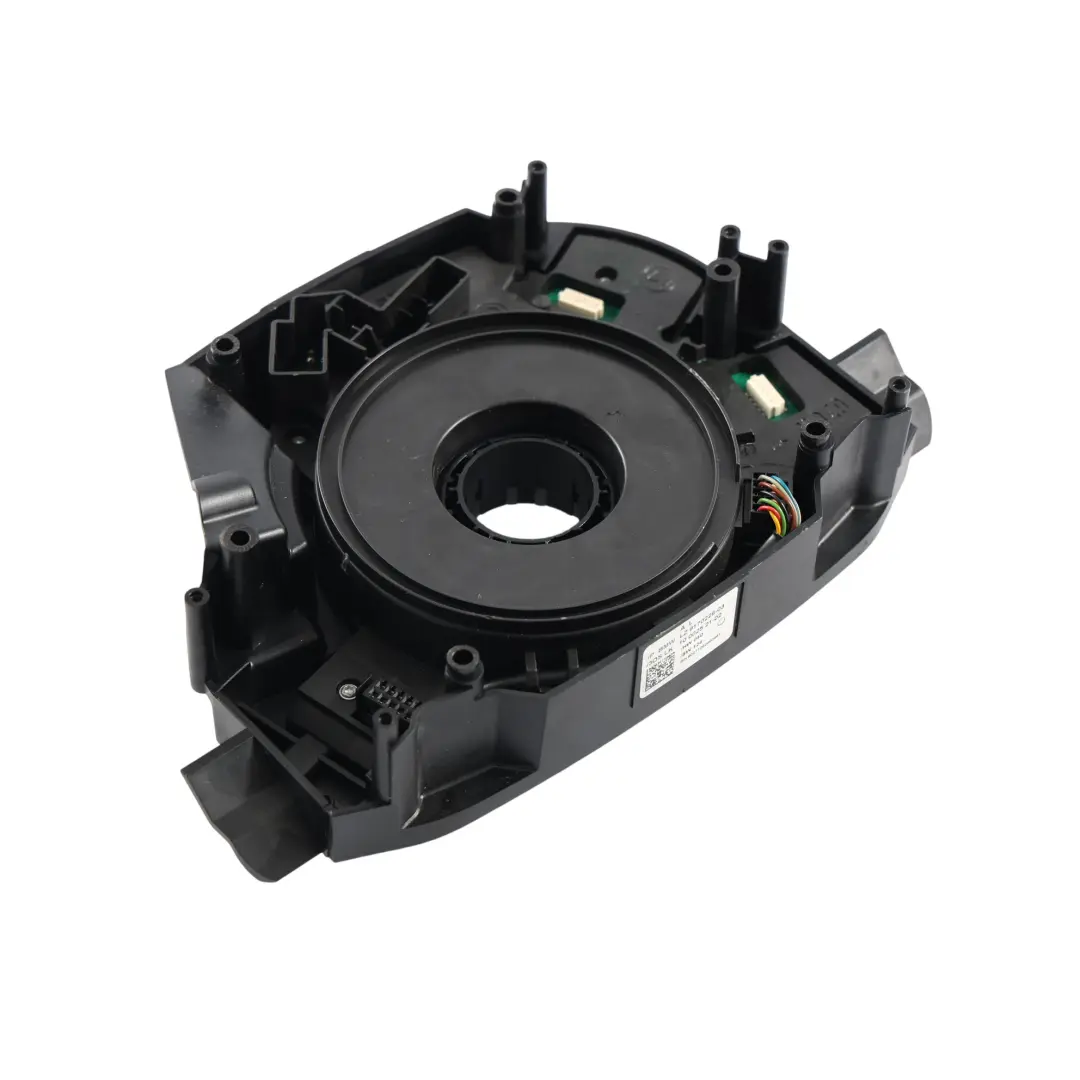

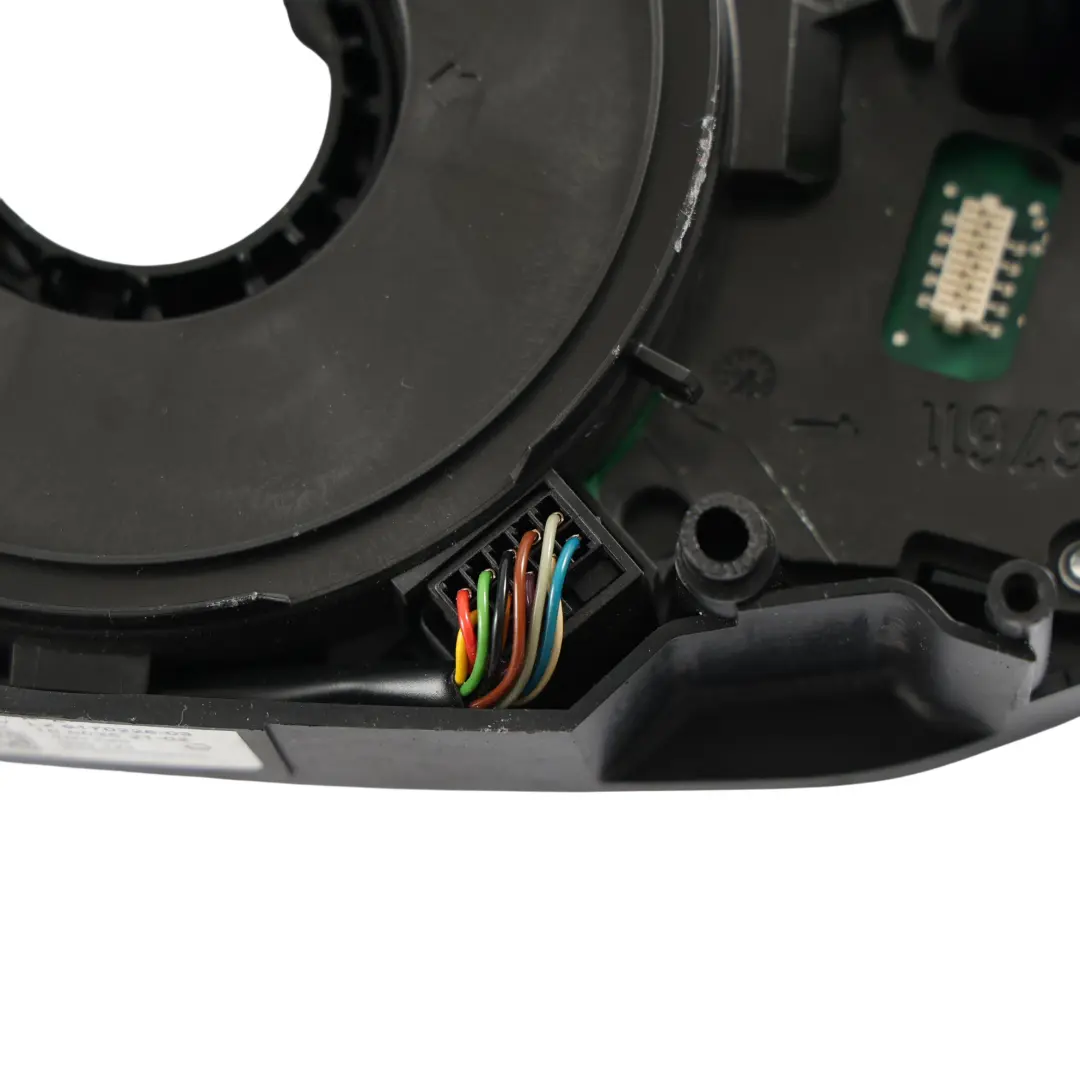

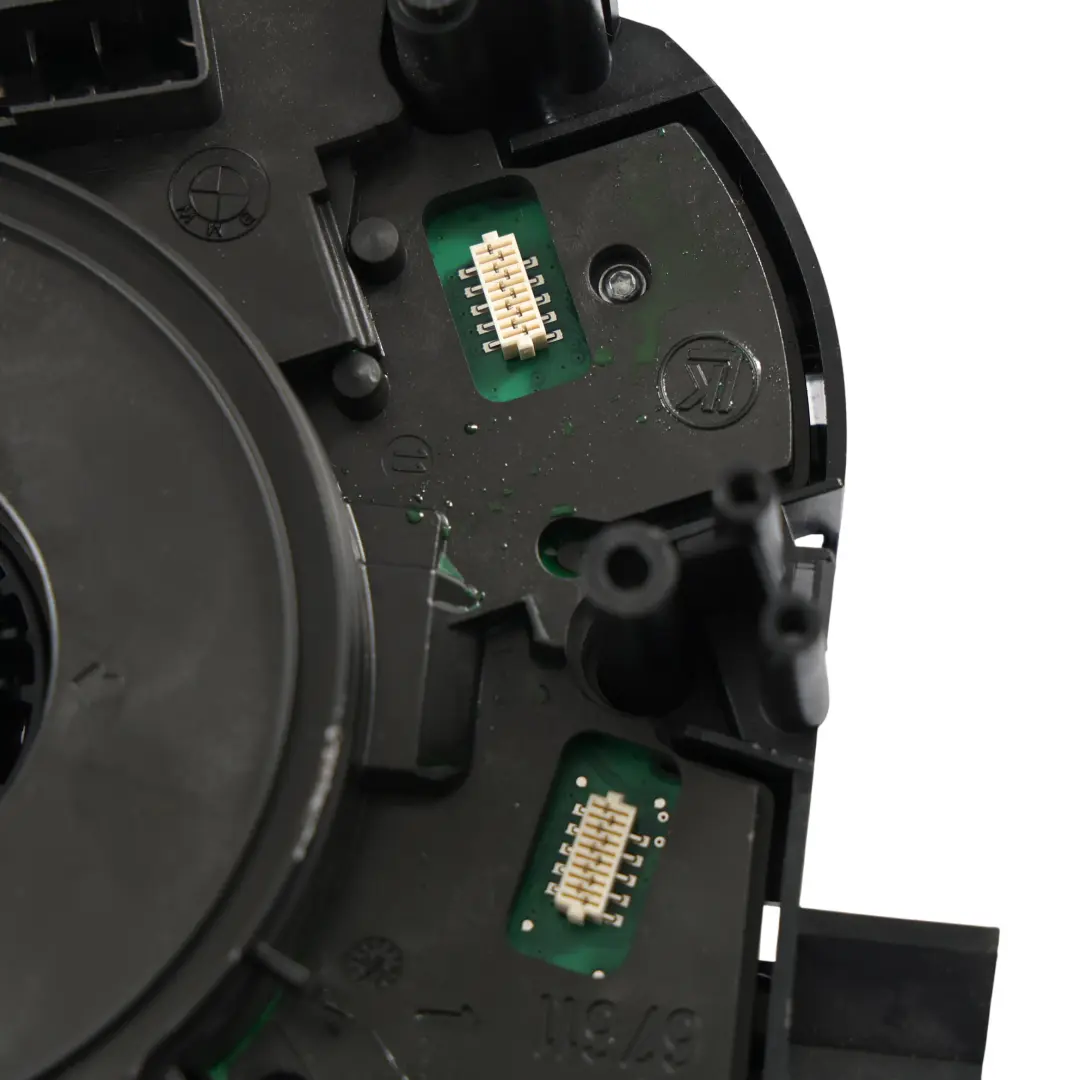

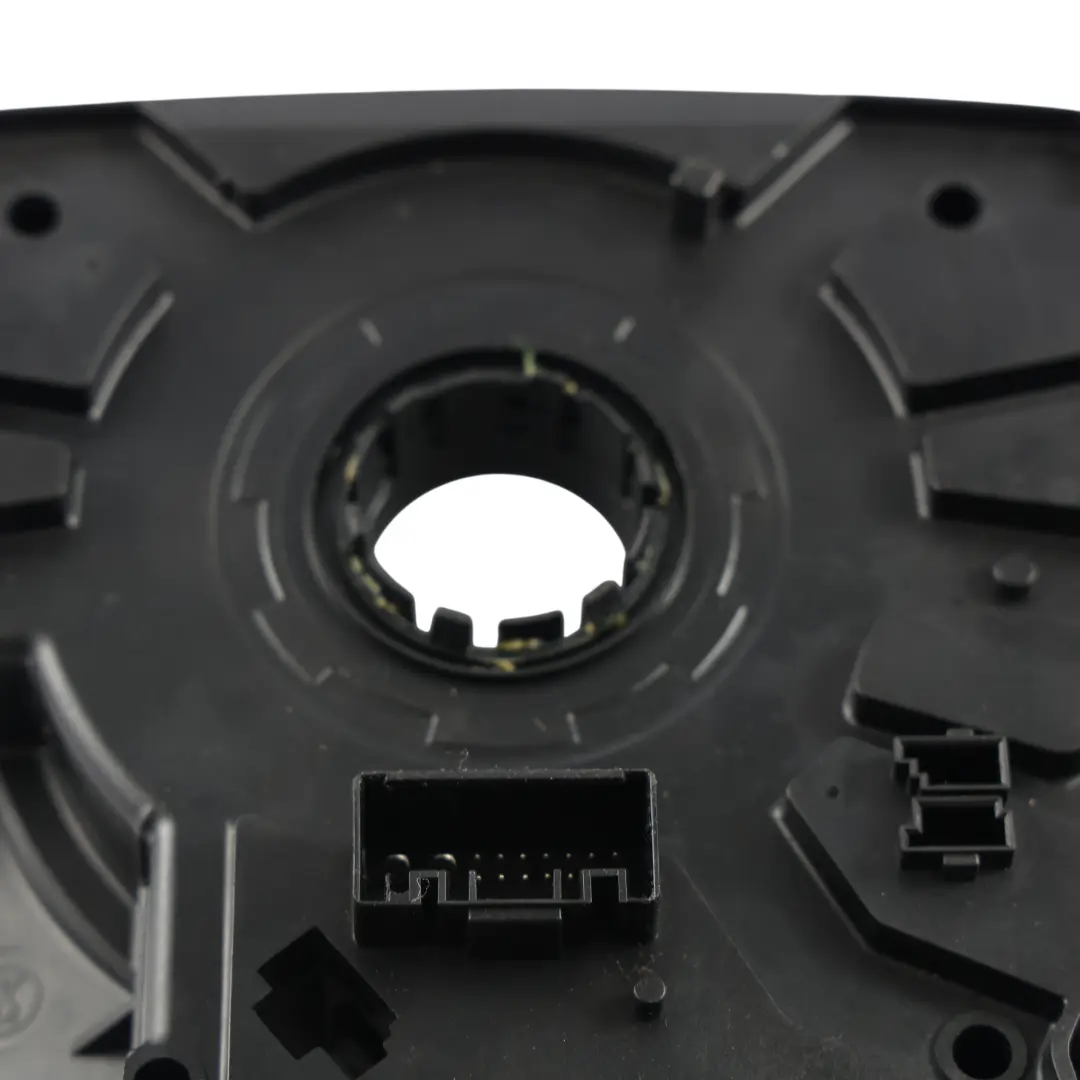

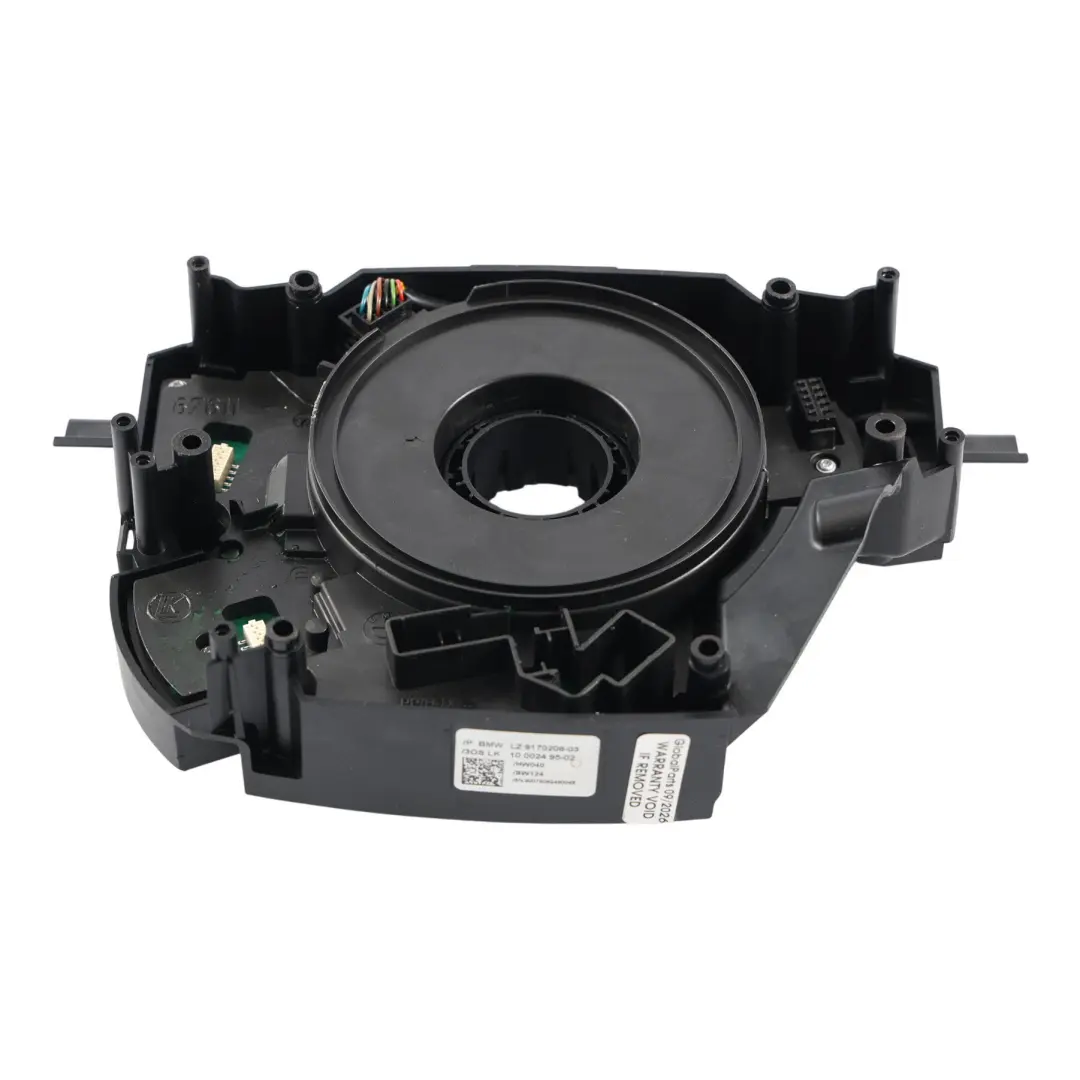

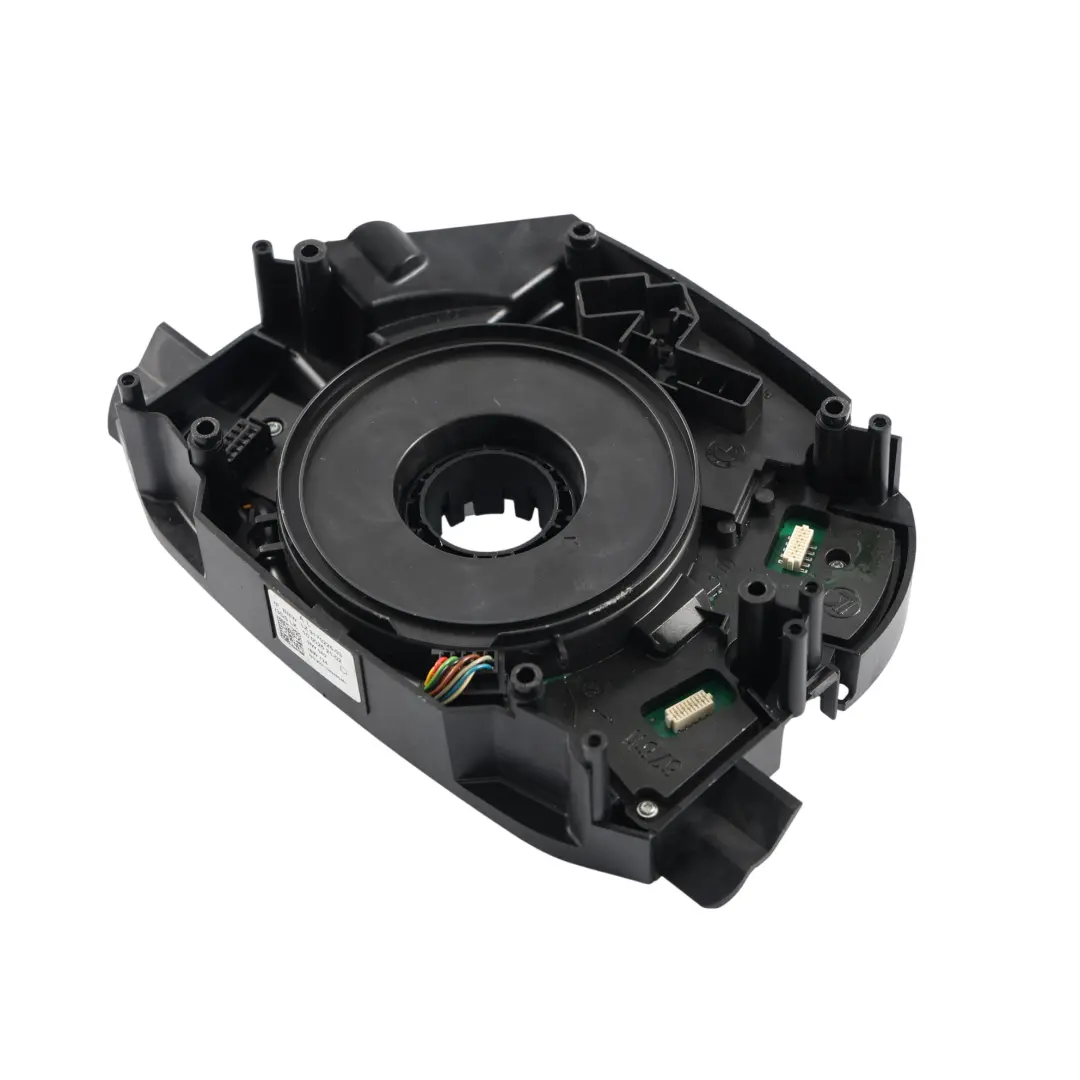

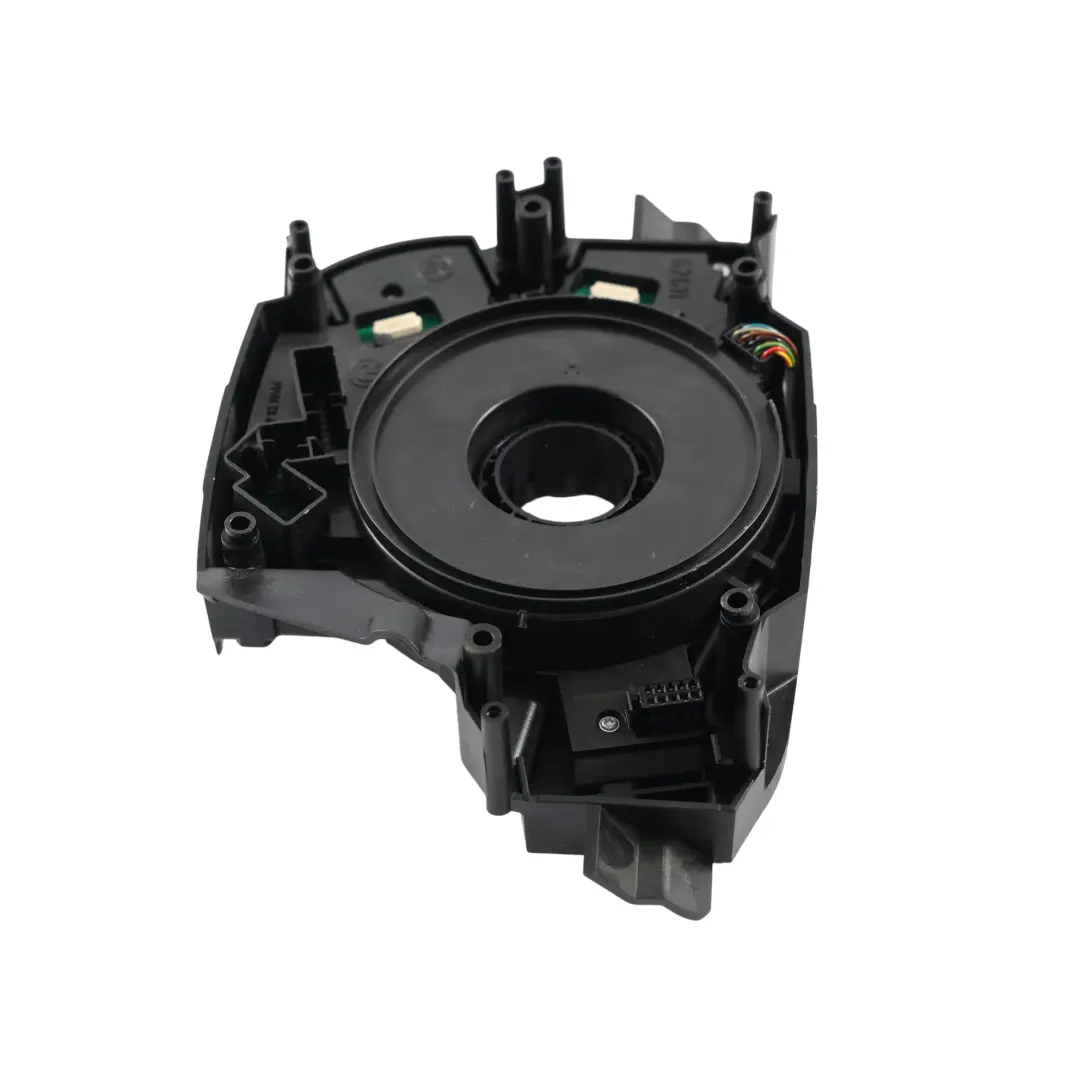

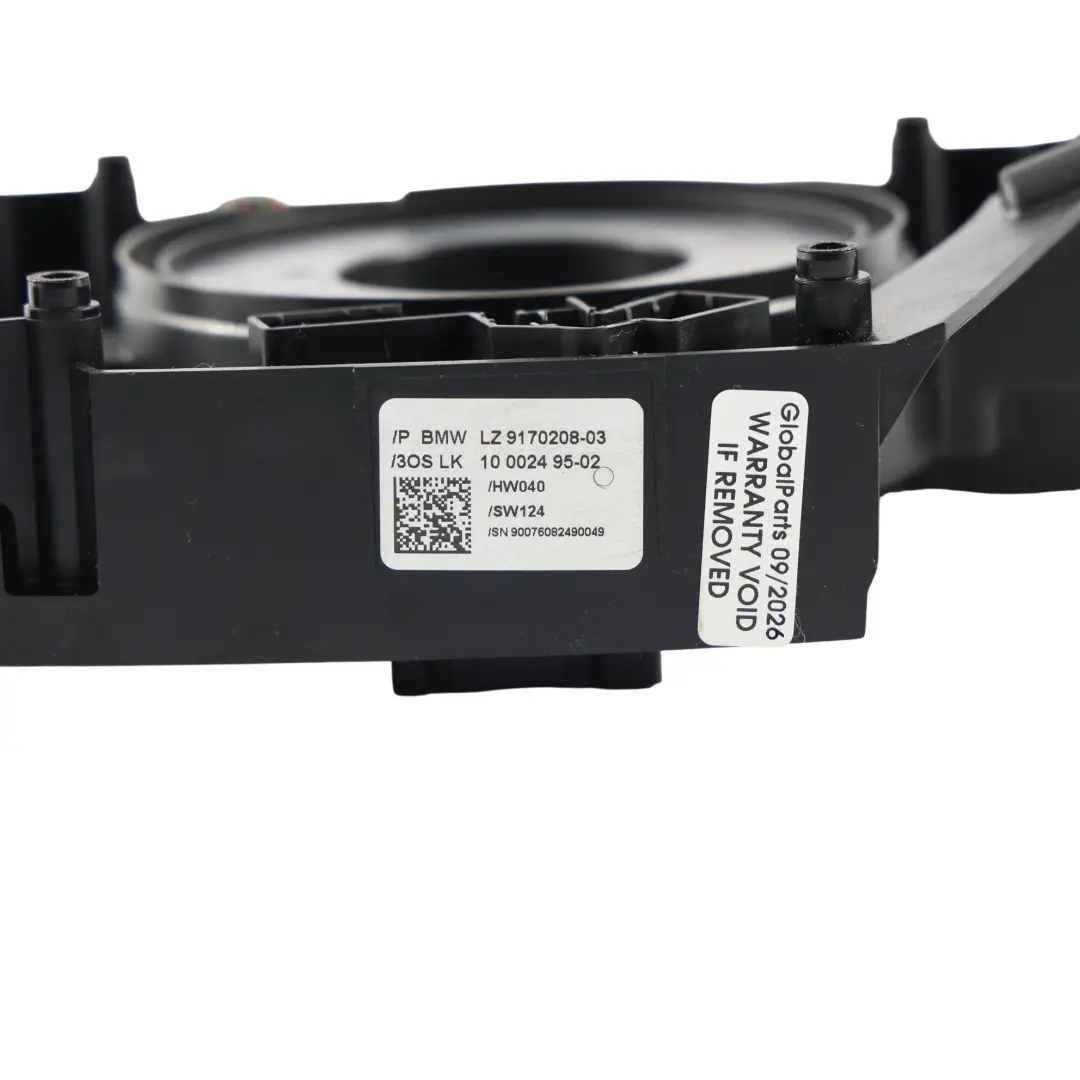

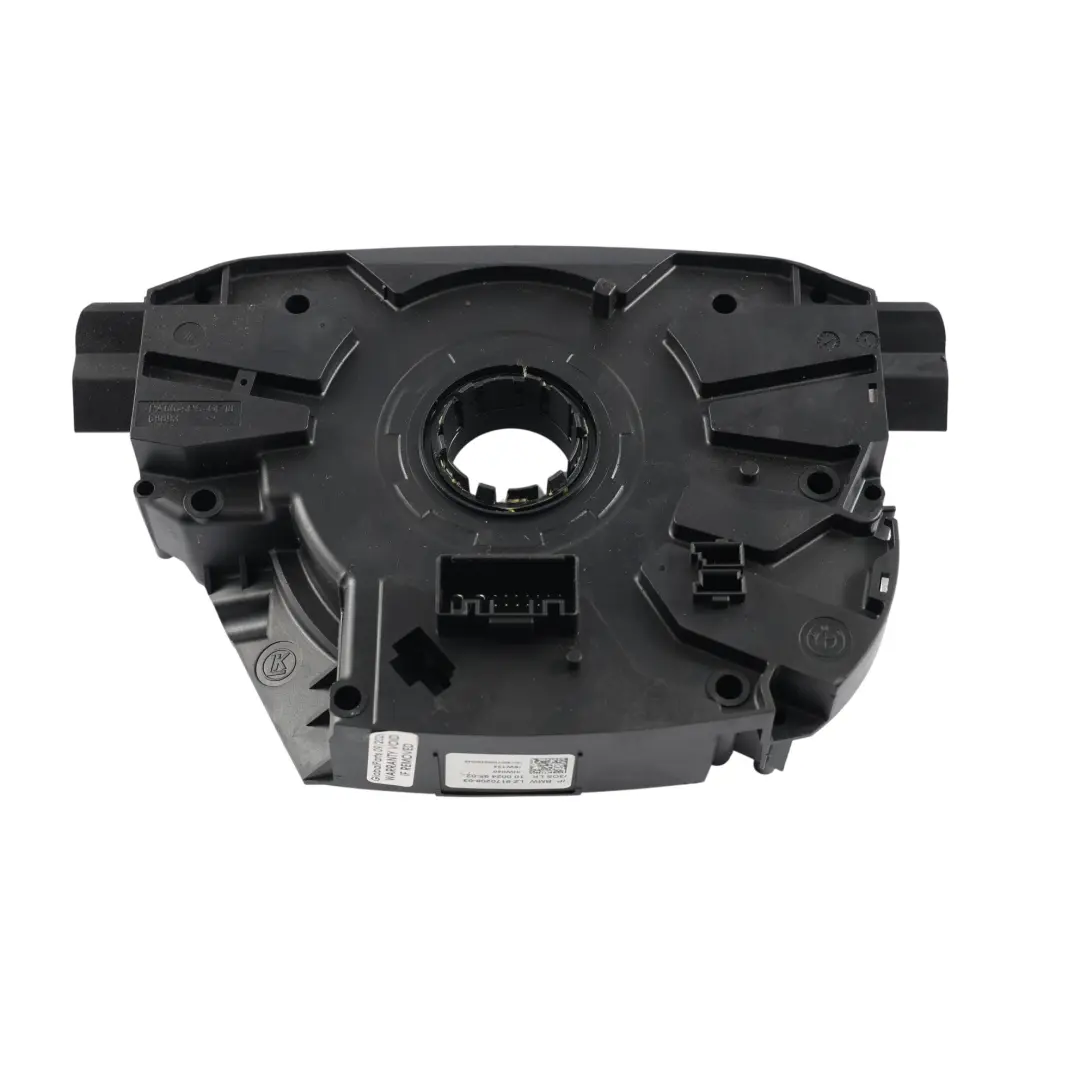

BMW E60 E61 E63 E63 E64 LCI Switch Cluster Steering Column Slip Ring 9170226

BMW E60 E61 E63 E64 LCI Switch Cluster Steering Column Slip Ring is a component from the Steering Columns group, designed for facelift (LCI) BMW 5 and 6 Series models. It is responsible for the precise operation of steering wheel functions and works in conjunction with the clock spring system, ensuring proper communication with the vehicle's electronics. This solution allows for maintaining factory ergonomics and consistency of the control system in the cabin.

Specifications and technical data

• SKU: 9204505-1
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9204505
• Substitutable numbers: 61319204505, 9204505, 61319170226, 9170226, 61316968198, 6968198, 9204503, 9204508, 9170208
• Category: Steering Columns

Purpose and function in the steering system

The switch cluster with a slip ring in facelift BMW E60, E61, E63, and E64 models plays a key role in steering column control. It integrates several vehicle operation functions into a single housing while working with the clock spring tape responsible for transmitting signals between the steering wheel and the electrical system. This ensures consistent operation of control systems and user comfort. The component from this group is particularly important when replacing a damaged module after a collision, electrical failure, or issues with steering wheel button communication. Using an original BMW solution allows for maintaining the correct operating parameters of the system and compatibility with the equipment of a specific model version.

Compatibility and interchangeable numbers

The offered switch cluster with a slip ring is part of the BMW OEM family, meaning it was designed for specific model platforms and their electronics. Within this reference, there are various interchangeable numbers, allowing the part to be used as a replacement in many factory configurations within the same vehicle generation. For the user, this means the possibility of matching the component to the car not only by the main number but also by reference numbers that the manufacturer has designated as mutually compatible. In practice, this facilitates the selection of the correct module during repairs, upgrades, or replacement of a damaged steering column.

Component characteristics and advantages of use

The switch cluster with a slip ring in this configuration is structurally prepared for installation in factory mounting points on the steering column. This allows for maintaining original wiring routing, correct clock spring tape positioning, and proper geometry relative to the steering wheel and other cockpit elements. The main benefits of using this solution include:

• maintaining factory ergonomics of steering wheel controls,
• consistency with the original BMW electrical and electronic system,
• the ability to use the part in place of several interchangeable numbers within the same family,
• easier diagnostics and service due to compliance with factory diagrams. The element comes from professional dismantling, which in practice means it was removed from a complete vehicle, not from randomly selected sub-assemblies. This type of part is a good choice for repairs where maintaining the original architecture of the steering system is important.

Condition, origin, and practical application

The offered switch cluster with a slip ring is a used part, which allows for combining reasonable repair costs with maintaining the original BMW specification. In many cases, this is a more advantageous solution than installing random replacements with uncertain compatibility with the vehicle's electronics. When selecting this type of component, it is worth paying attention to compatibility with the specific car equipment version and the reference numbers assigned to the given unit. This helps avoid problems with module communication, comfort system errors, or improper operation of steering wheel functions. If you are planning a comprehensive repair or upgrade of the steering column area in your BMW and need other elements from the same group, such as housings, mounts, or additional steering wheel modules, check the available parts in the BMW Steering Columns category.
