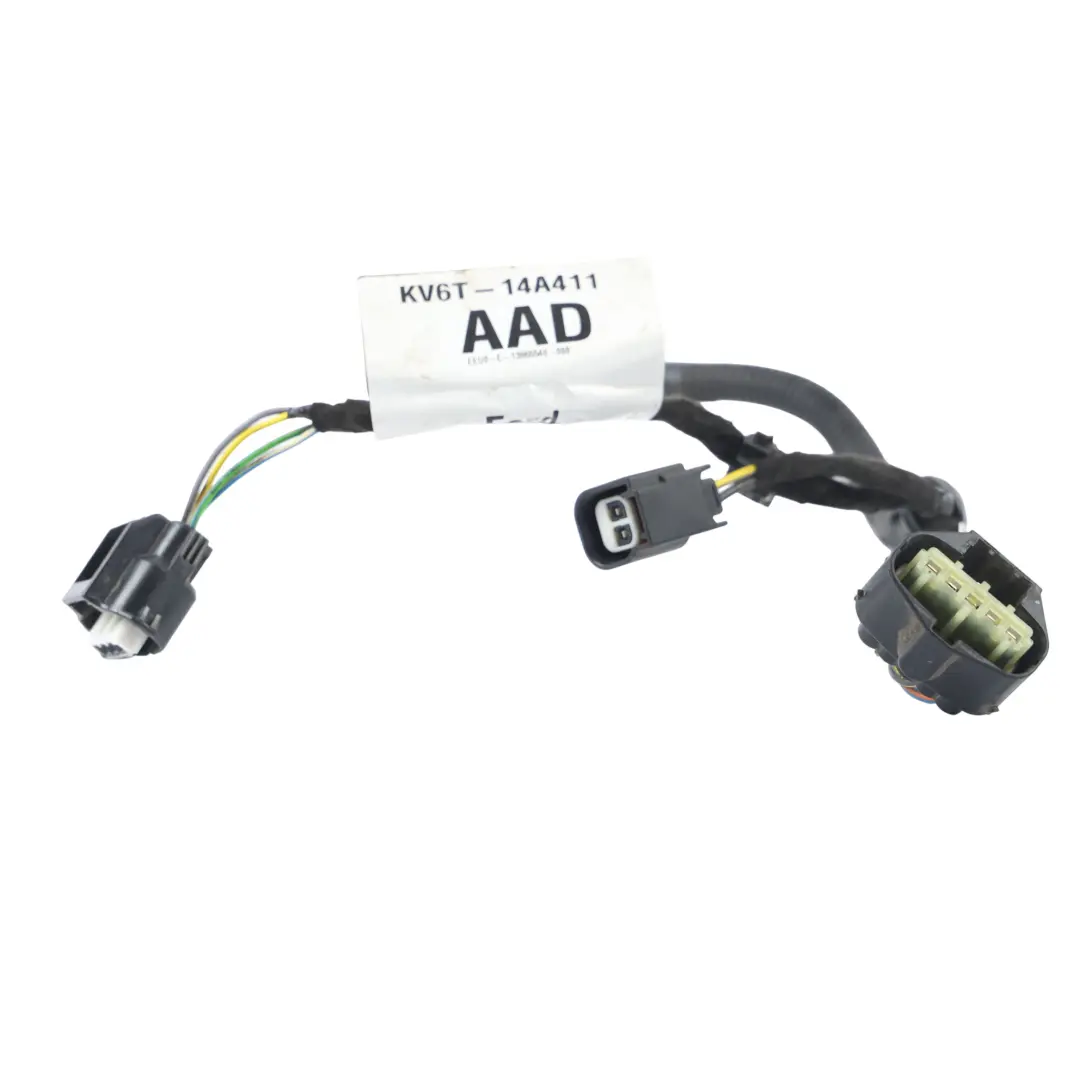

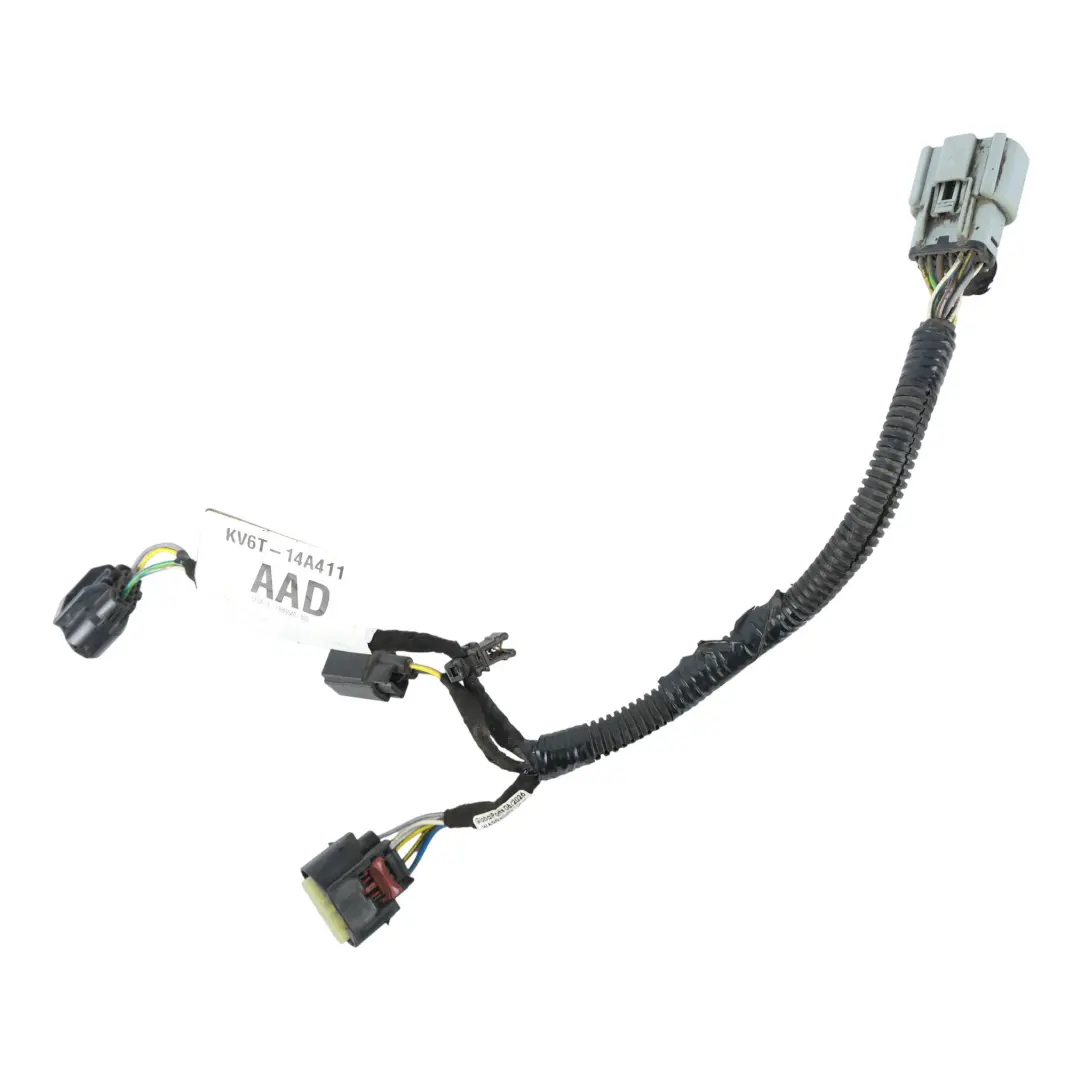

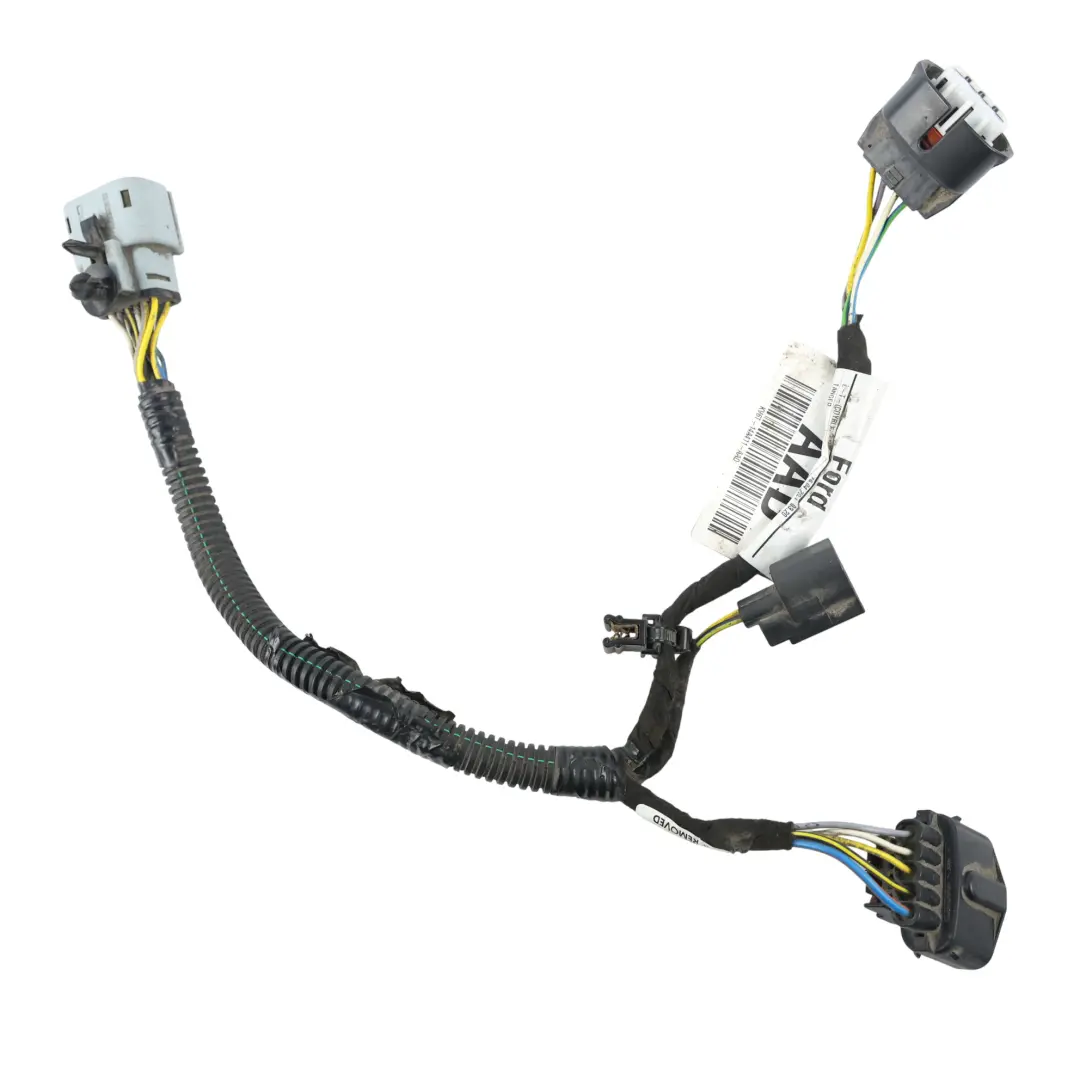

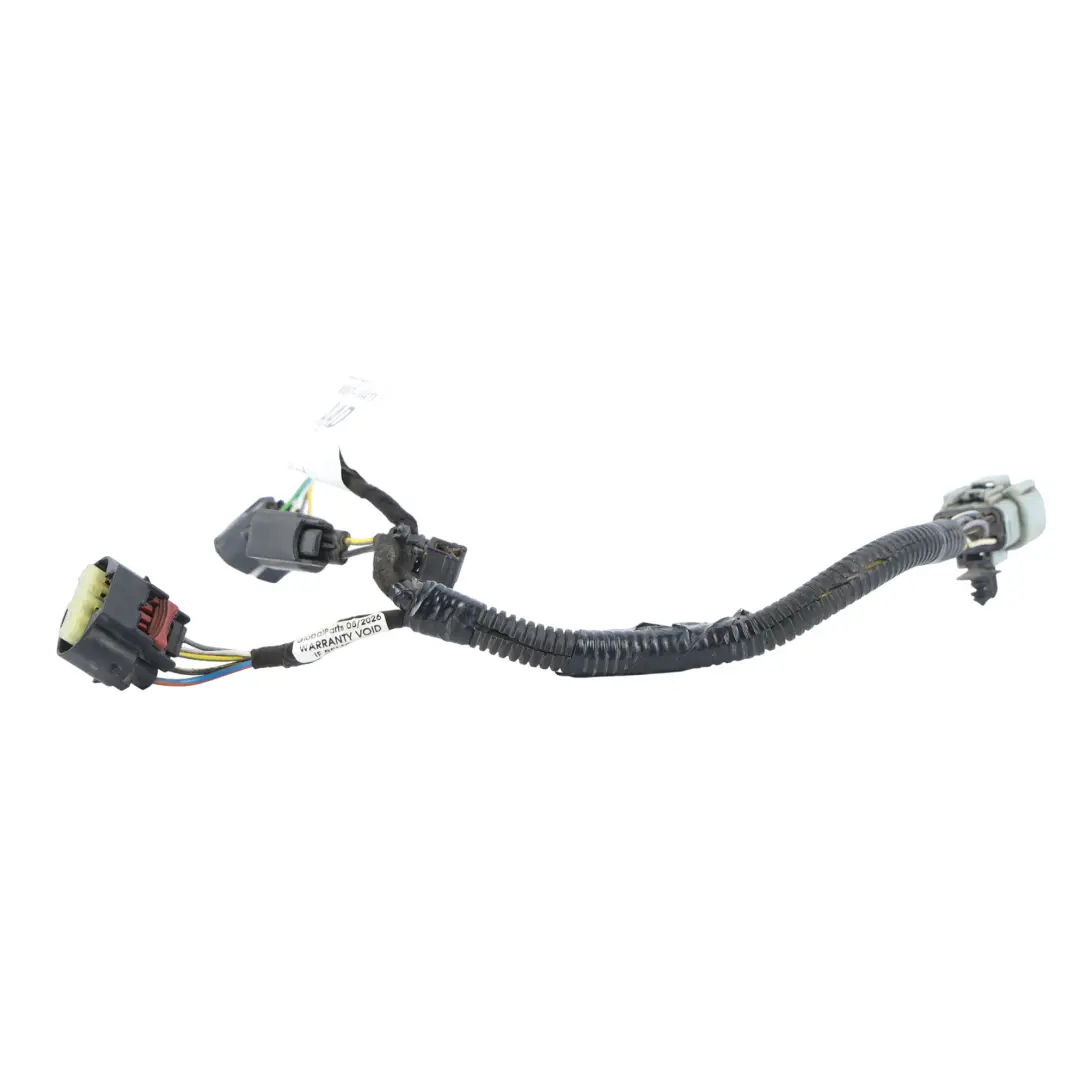

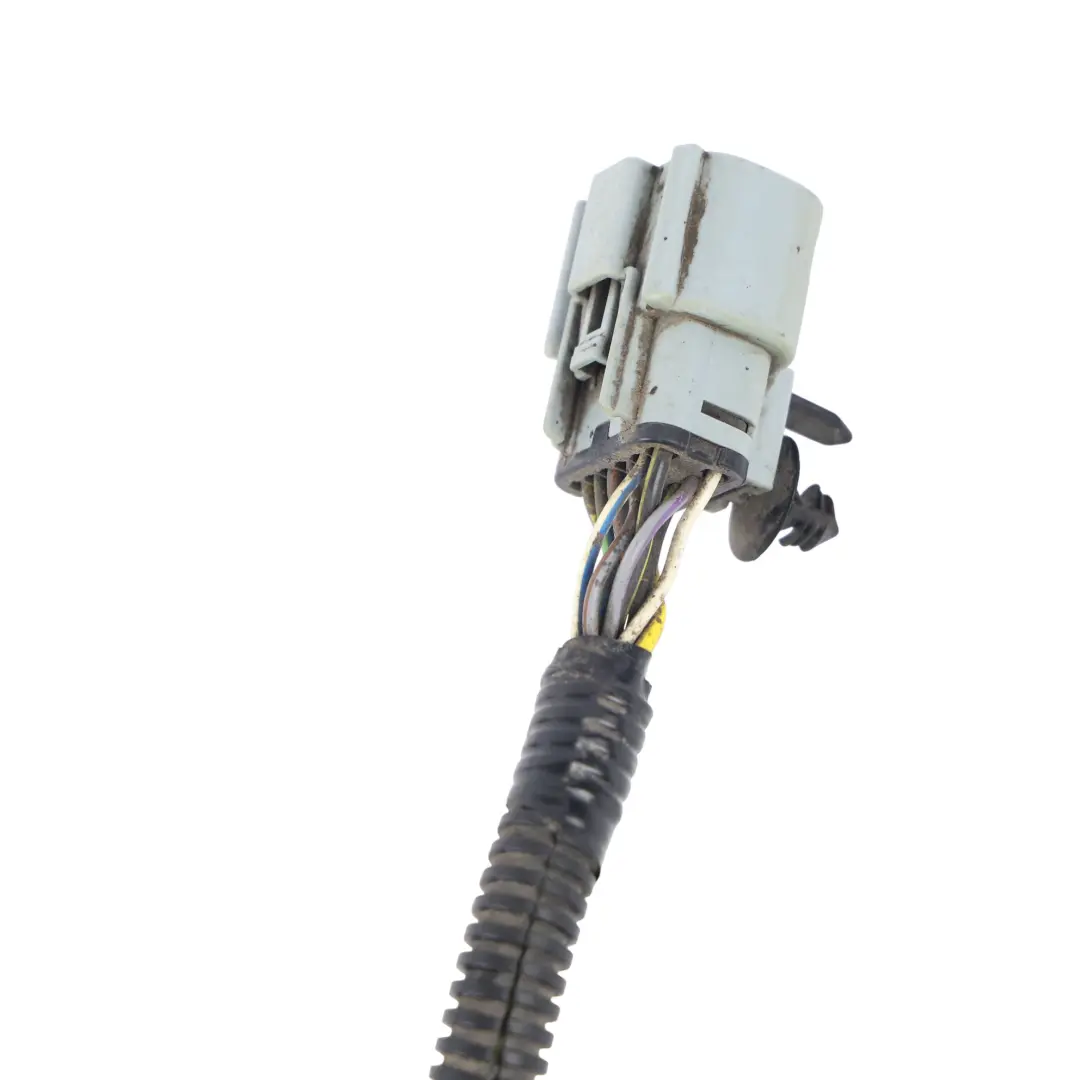

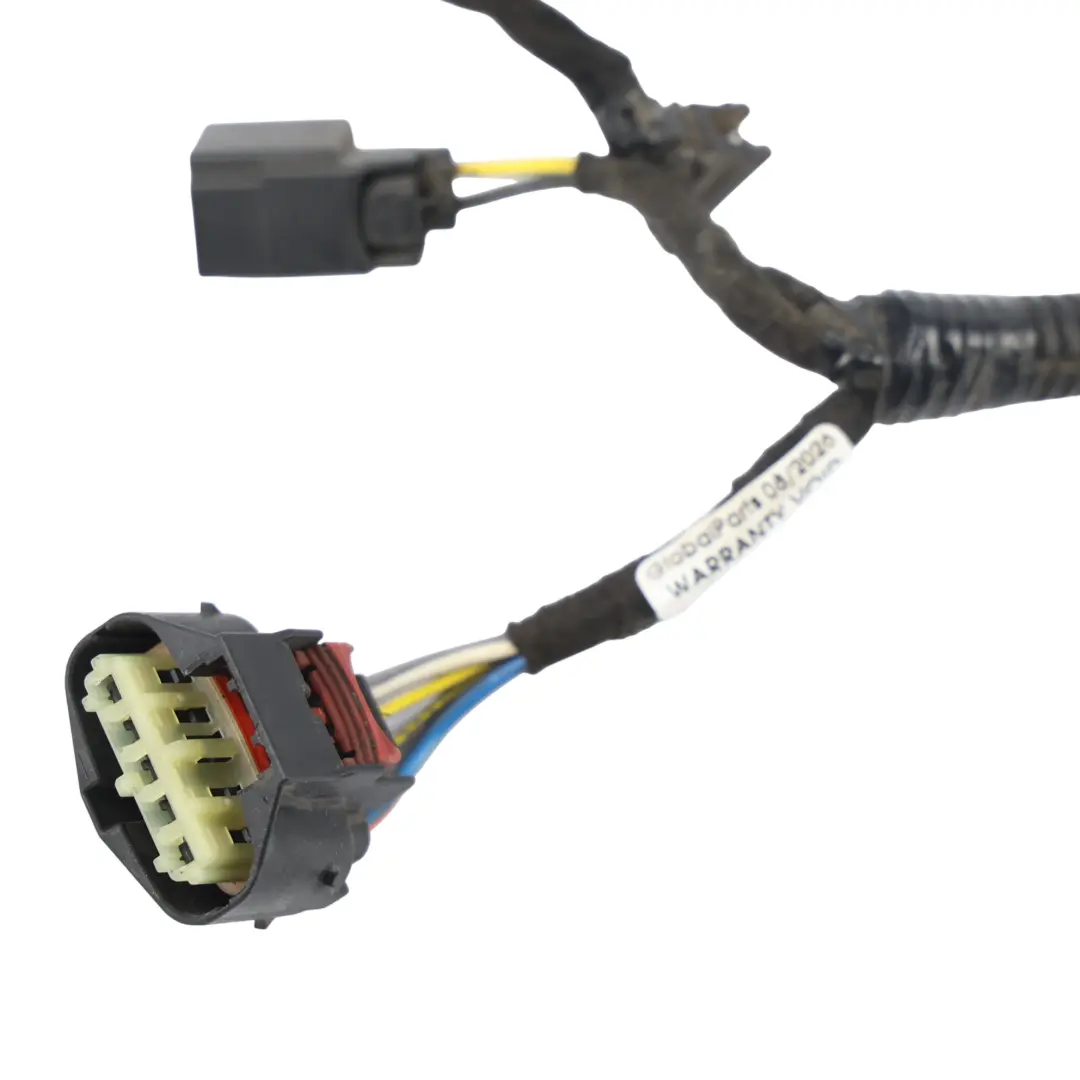

Ford Transit Connect Mk2 EcoBlue Diesel 1.5 Wiring Harness Cable Loom 2569987

Ford Transit Connect Mk2 EcoBlue Diesel 1.5 Wiring Harness Cable Loom is an original electrical installation component designed for diesel vehicles. As part of the Wires, harnesses and connectors group, it ensures a consistent connection of key components, which translates into stable operation of control systems. This used, factory-made harness is a sensible choice for users looking for a proven component with maintained compatibility with the factory Ford installation.

Specifications and technical data

• SKU: 2569987
• Mark: Ford
• Condition: Used
• OEM Part Number: 2569987

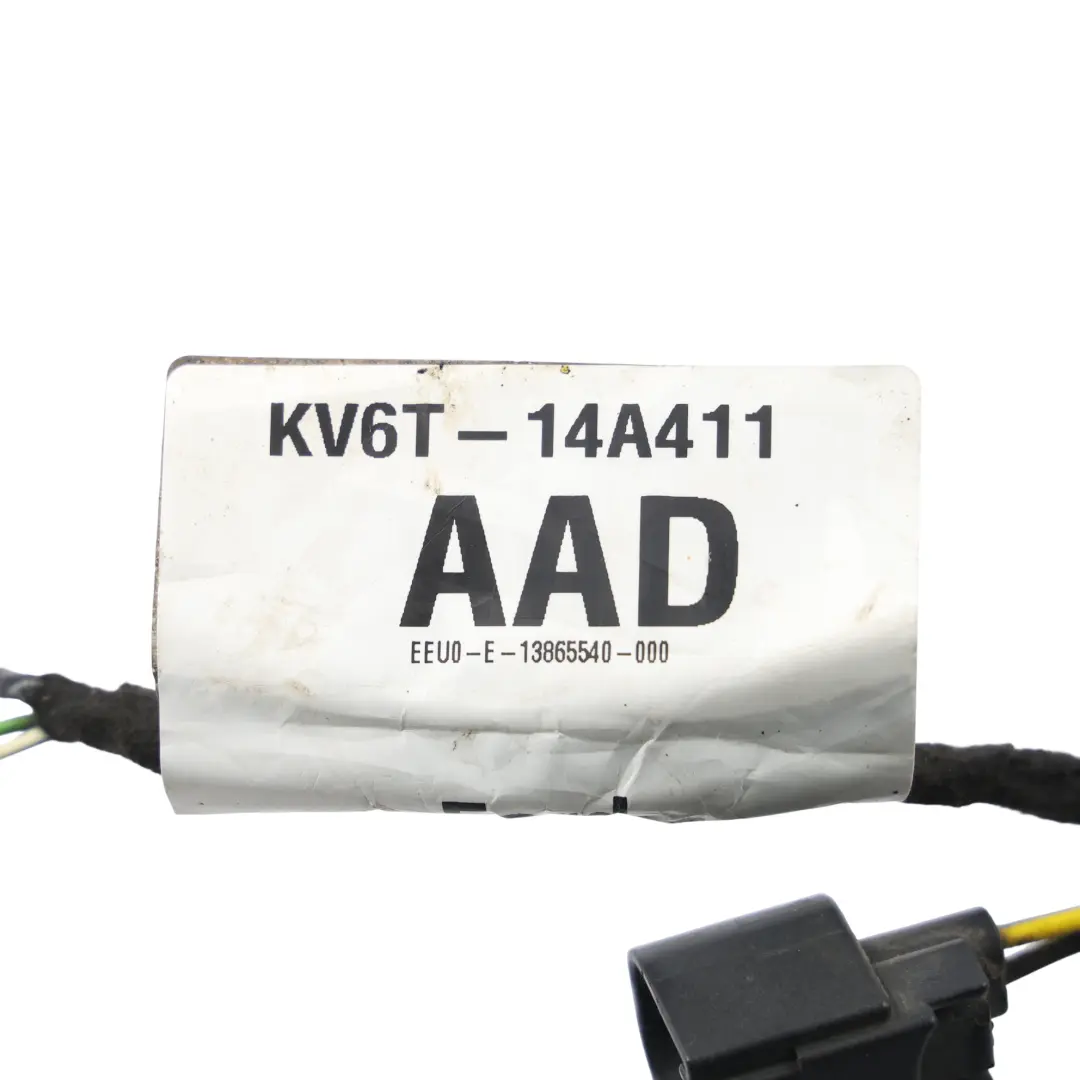

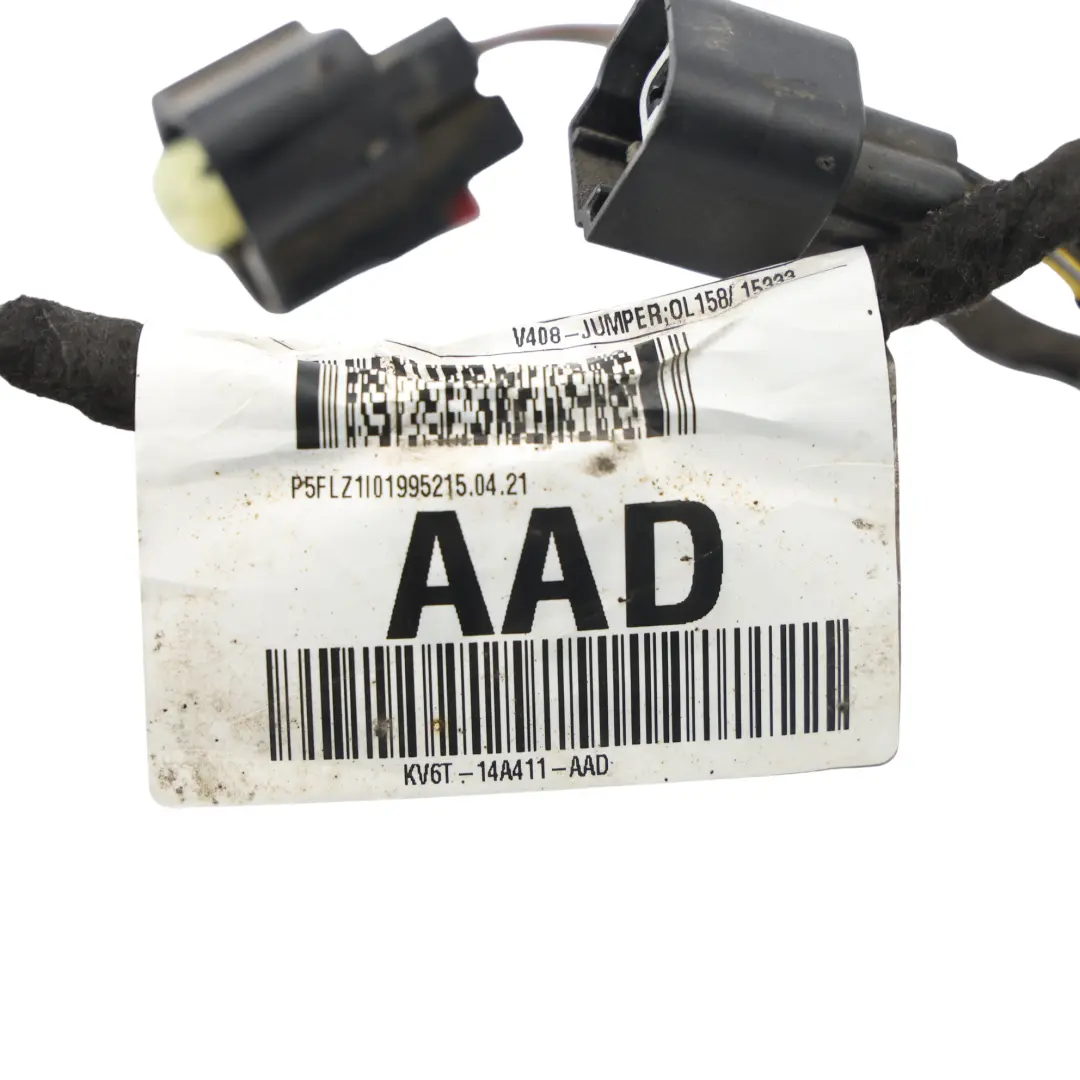

• Substitutable numbers: 2569987, KV6T-14A411-AAE, KV6T14A411AAE, KV6T-14A411-AAD, KV6T14A411AAD
• Fuel type: Diesel
• Part type: Wire Harness
• Category: Wiring Harnesses, Cables & Connectors

Purpose and role in the vehicle

The presented wiring harness has been designed for the Ford Transit Connect Mk2 model with a 1.5 EcoBlue unit and Diesel power supply. It is responsible for transmitting signals and power between engine equipment components, controllers, and sensors, which has a direct impact on the correct operation of the drive system and auxiliary systems. Thanks to its factory origin, the correct lengths of sections, wire cross-sections, and connector placement are maintained, which facilitates installation and limits the risk of installation errors. This is particularly important in modern diesel units, where the stability of electrical signals affects engine performance and combustion parameters.

Construction and technical features

The harness belongs to the Wires, harnesses and connectors group, which means that it includes both power and signal wires, terminated with appropriately matched connectors. The design provides for factory mounting points, routing along original paths, and protection against abrasion and temperature influence in the engine compartment.

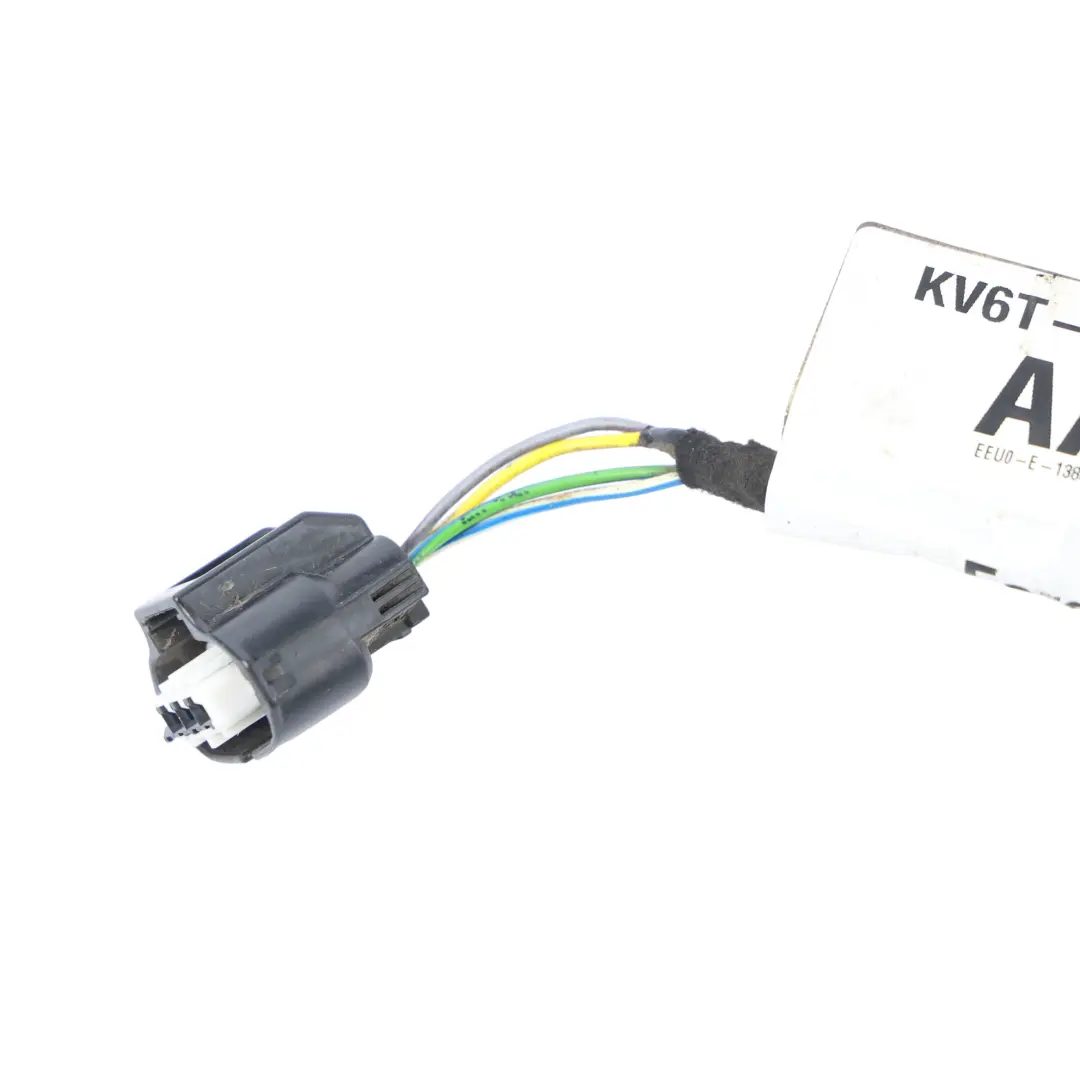

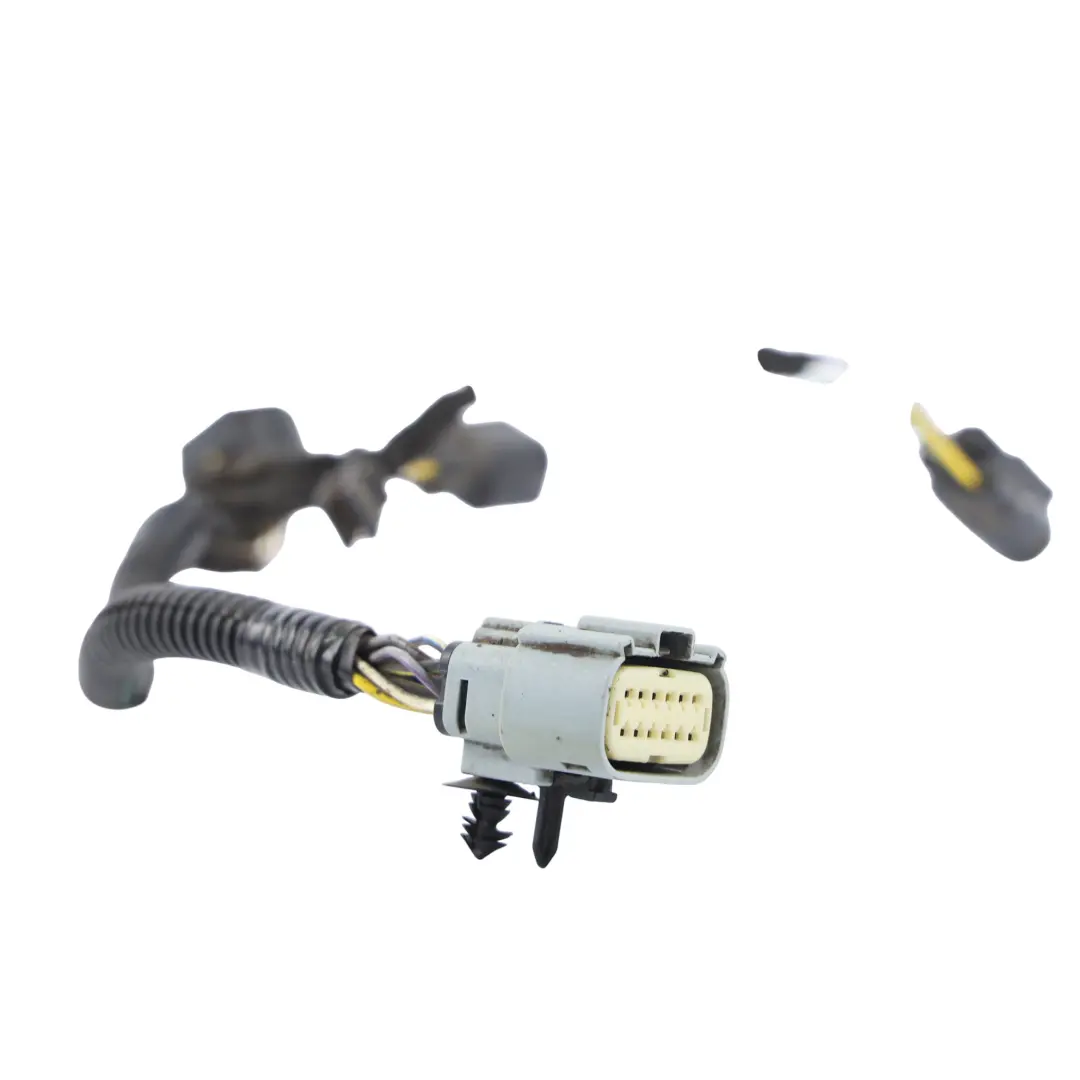

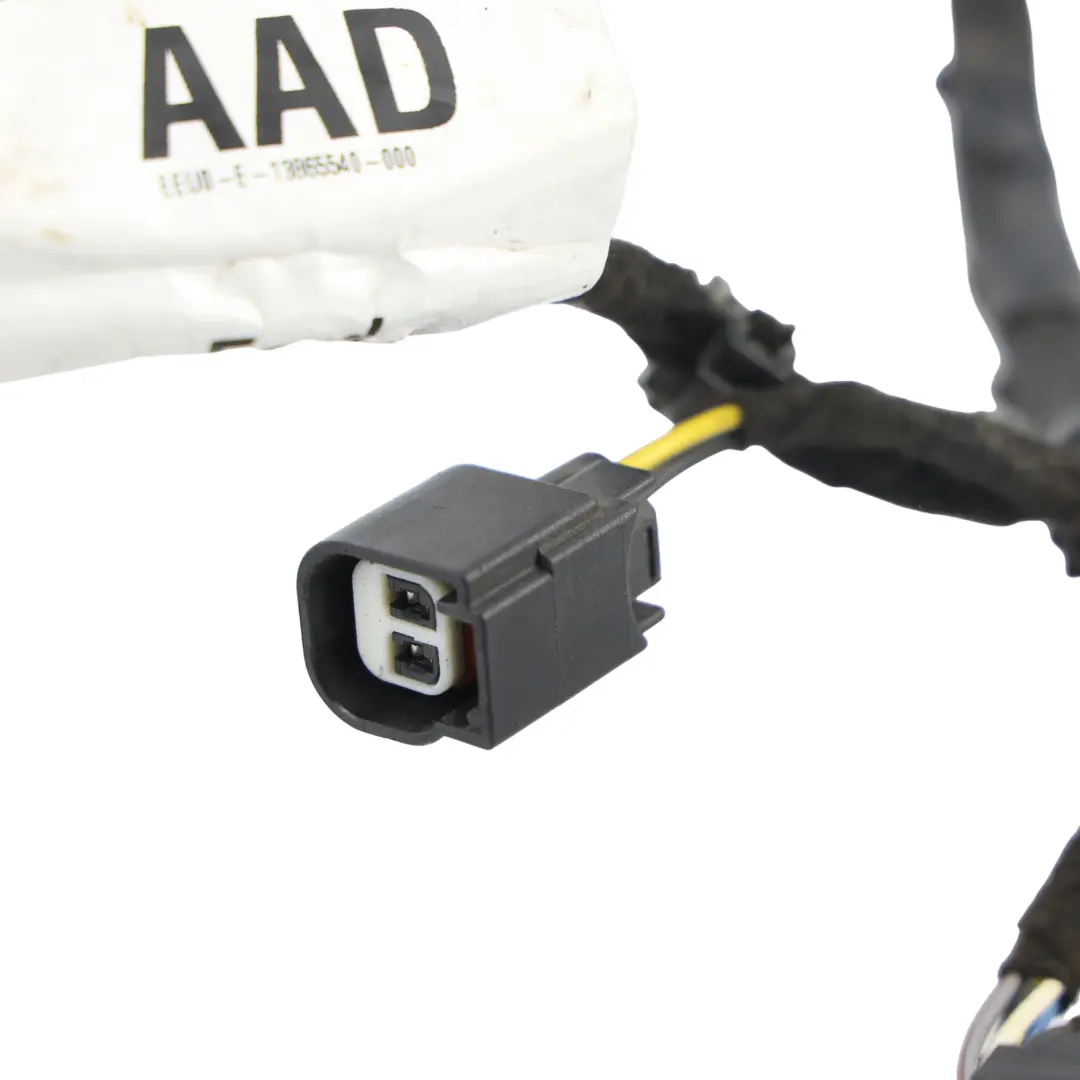

• factory connectors matched to Ford Transit Connect Mk2 components,
• wires adapted to the loads typical for the EcoBlue Diesel unit,
• harness layout designed for the specific arrangement of components in the engine compartment. Such a configuration allows for maintaining compliance with factory service documentation and facilitates the diagnosis of potential faults in the future.

Application in the EcoBlue Diesel 1.5 engine

EcoBlue 1.5 Diesel engines use extensive control electronics, and the wiring harness is a key element connecting sensors, actuators, and controllers. A properly selected harness:

• supports the correct operation of the injection system and combustion control systems,
• ensures stable power supply for electrical components in the engine compartment,
• minimizes the risk of signal interference thanks to proper shielding and wire routing. Thanks to this, replacing a damaged or corroded harness with an original part from dismantling allows for restoring the correct operating parameters of the drive unit without the need for costly installation modifications.

Condition, origin and cost-effectiveness of installation

The offered wiring harness is a used component, which in practice means a favorable compromise between the purchase cost and maintaining the original Ford manufacturing quality. Unlike universal replacements, the factory harness from the same model series ensures the correct fit of connectors, wire lengths, and mounting points, which shortens installation time and limits the risk of modifications. For many users and workshops, choosing an original used part is a conscious service strategy – especially in the case of electrical components, where compliance with the factory design has a direct impact on reliability. If you want to better understand the differences between regeneration and installing components from dismantling, it is worth reading the article Refurbished or used original – which part to choose for repair?.

Complementary Ford Wires, harnesses and connectors

If you are planning a comprehensive repair or modernization of the electrical installation area in your Ford and need other elements from the same group, such as additional engine harnesses, wire sections, or service connectors, check the available parts in the Ford Wires, harnesses and connectors category.
